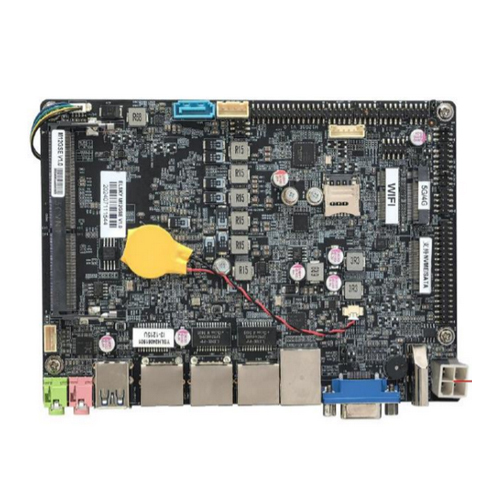

M12GSE 4 Inch Motherboard

Get a Price/Quote

MOQ : 1 Piece

M12GSE 4 Inch Motherboard Specification

Processing
Lead-Free Wave Soldering

Finish
Solder Masked with Silkscreen

Color
Green / Black

Temperature
-20C to 70C Celsius (oC)

Surface Treatment
ENIG (Electroless Nickel/Immersion Gold)

Material
High-Quality PCB with Integrated Circuits

Input Voltage
12V DC Volt (V)

Technique
6-Layer PCB Fabrication

Installation Guideline
Standard ATX/mini-ITX Mounting, Refer User Manual

Design
Compact All-in-One Board

Product Type
Motherboard

Standard
RoHS, CE, FCC

IP Rating
IP20

Weight
280g Grams (g)

Frequency
Supports up to 2.0 GHz CPU Hertz (HZ)

Thickness
1.6mm Millimeter (mm)

Humidity
10% - 90% (Non-Condensing)

Supply Voltage
12V DC Volt (v)

Mounting Type
Screw and Standoff

Process
SMT and Through-Hole

Output Voltage
3.3V, 5V (Onboard for Peripherals) Volt (V)

Dimension (L*W*H)
170mm x 170mm x 30mm Millimeter (mm)

Service Period
3 Years Warranty

Application
Industrial Automation, Digital Signage, Network Security, Edge Computing

Equipment Type
Single Board Computer Motherboard

Usage
Embedded and Industrial Computing

Tolerance
0.1mm Millimeter (mm)

Size
4 Inch

Watchdog Timer
256 Levels

Storage Interface
SATA III, mSATA, SD Card Slot

Power Connector
DC-In Jack, ATX Power Header

I/O Ports
4 x USB 2.0, 2 x USB 3.0, 2 x COM, 1 x GPIO Header

BIOS
AMI UEFI BIOS

Chipset
Integrated

Memory Type
DDR3L SO-DIMM up to 8GB

Compliance
CE, FCC, RoHS Certified

Cooling
Passive/Active Heatsink Supported

Operating Systems
Windows 7/8/10, Linux Compatible

Audio
HD Audio, Line Out, Mic In

CPU Support
Intel Atom E3845 Quad Core Embedded Processor

Display Interface
HDMI, LVDS, VGA

LAN
2 x Gigabit Ethernet Ports (RJ45)

Expansion Slots
Mini PCIe, SIM Card Slot

Graphics
Integrated Intel HD Graphics

M12GSE 4 Inch Motherboard Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About M12GSE 4 Inch Motherboard

For a limited time, experience the illustrious M12GSE 4 Inch Motherboard, meticulously crafted for embedded and industrial computing. Packed with an unmatchable Intel Atom E3845 Quad Core Embedded Processor and laureate DDR3L memory support up to 8GB, this compact board delivers outstanding connectivity and integrated Intel HD Graphics. Certified for CE, FCC, and RoHS, it boasts robust design, lead-free processing, and advanced 6-layer PCB fabrication. Grab yours now and buy online to elevate your digital signage, edge computing, and automation applications with confidence.

Features and Versatile Applications of M12GSE 4 Inch Motherboard

Offering passive or active heatsink support and a compact all-in-one design, the M12GSE is ideal for both specific and general industrial uses. Integrated interfaces like SATA III, HDMI, LVDS, and dual Gigabit LAN ensure adaptability for digital signage, industrial automation, and network security. The surface can be applied on standard ATX or mini-ITX mounts as per the installation guidelines. Its robust build and wide operating range make it suitable for demanding environments.

Export Market, Packaging Details, and Shipping Information

The M12GSE 4 Inch Motherboard is dispatched internationally, serving key export markets across Europe, Asia, and America. Each unit is carefully packed with anti-static material and sturdy export cartons to ensure safe order processing and transit. FOB Port options include Mumbai or other major Indian ports. Whether shipping via air or sea freight, rapid dispatching and clear logistics processes guarantee prompt and secure delivery to your destination.

FAQ's of M12GSE 4 Inch Motherboard:

Q: How is the M12GSE 4 Inch Motherboard typically used in industrial environments?

A: The M12GSE 4 Inch Motherboard is widely used in industrial automation, digital signage, network security, and edge computing applications. It's engineered to offer stability and robust performance in demanding settings.

Q: What are the main benefits of buying the M12GSE motherboard online for a limited time?

A: Purchasing online within the limited offer period grants access to competitive pricing, verified warranty support, and expedited delivery, ensuring you receive a genuine laureate-quality motherboard efficiently.

Q: Which operating systems are compatible with the M12GSE motherboard?

A: The M12GSE is compatible with Windows 7, 8, 10, and Linux operating systems, providing flexibility for various embedded and industrial software requirements.

Q: Where is the M12GSE motherboard manufactured and shipped from?

A: This equipment is manufactured and supplied in India, and orders are dispatched from Indian facilities to global markets through designated FOB ports.

Q: What process ensures the high quality and reliability of the M12GSE motherboard?

A: The M12GSE is produced using SMT and through-hole techniques, lead-free wave soldering, and a rigorous ENIG surface treatment on a 6-layer PCB, ensuring exceptional reliability and durability.
